LaAlO3 crystal is the substrate material for epitaxial growth of high temperature superconducting thin films and giant magnetoresistance thin films because of its good lattice matching with a variety of perovskite structure materials.

Keywords:

LaAlO3

  • Details
  • Characteristics
  • Parameters
  • Application

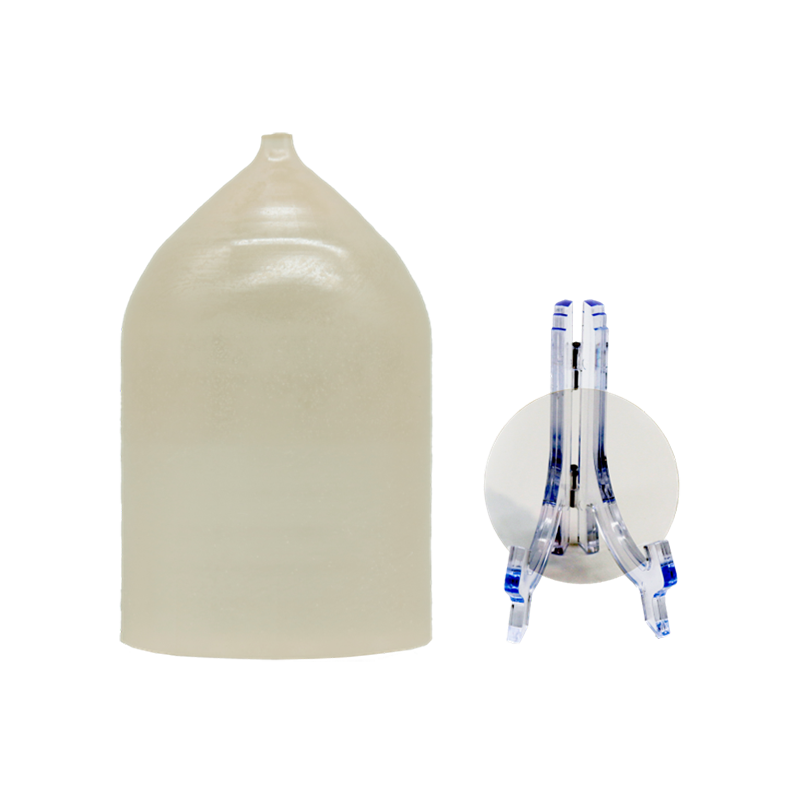

    • Commodity name: LaAlO3

    LaAlO3 crystal is the substrate material for epitaxial growth of high temperature superconducting thin films and giant magnetoresistance thin films because of its good lattice matching with a variety of perovskite structure materials.

    LaAlO3 is a high temperature superconducting single crystal substrate. It is a good substrate material for epitaxial growth of high temperature superconducting thin films and giant magnetic thin films. Its dielectric properties are suitable for low loss microwave and dielectric resonance applications.

    Main Advantages:

    Small dielectric constant

    Low dielectric loss

    Good lattice matching

    Small thermal expansion coefficient

    Good chemical stability; wide energy gap

    Large specific surface area

    Good thermal stability


    Typical applications:

    High temperature superconducting thin film epitaxial substrate; Macro-magnetic thin film epitaxial substrate; Microwave amplification and dielectric resonance

  • Chemical Formula LaAlO3
    Growth Method Czochralski
    Crystal System Hexagonal (room temperature)
    Lattice Constant Hexagonal a = 5.357Å c = 13.22 Å
    Hardness 6.5 Mohs
    Density 6.52g/cm3
    Melting Point Melting Point
    Thermal Expansion 10×10-6/℃
    Loss Tangent (10ghz) ~3×10-4@300K,~0.6×10-4@77K
  • Dimensions Max Diameter 76.2mm(3 inch)
    Thickness 0.5mm other thickness available
    Polishing Single or double
    Orientation <100><110><111>
    Ra Ra≤5Å(5µm×5µm)
    Orientation Tolerance  ±0.2°
    Orientation Flat 2°(within 1° for special requirement)
    Angle of Crystalline Special size and orientation are available upon request
